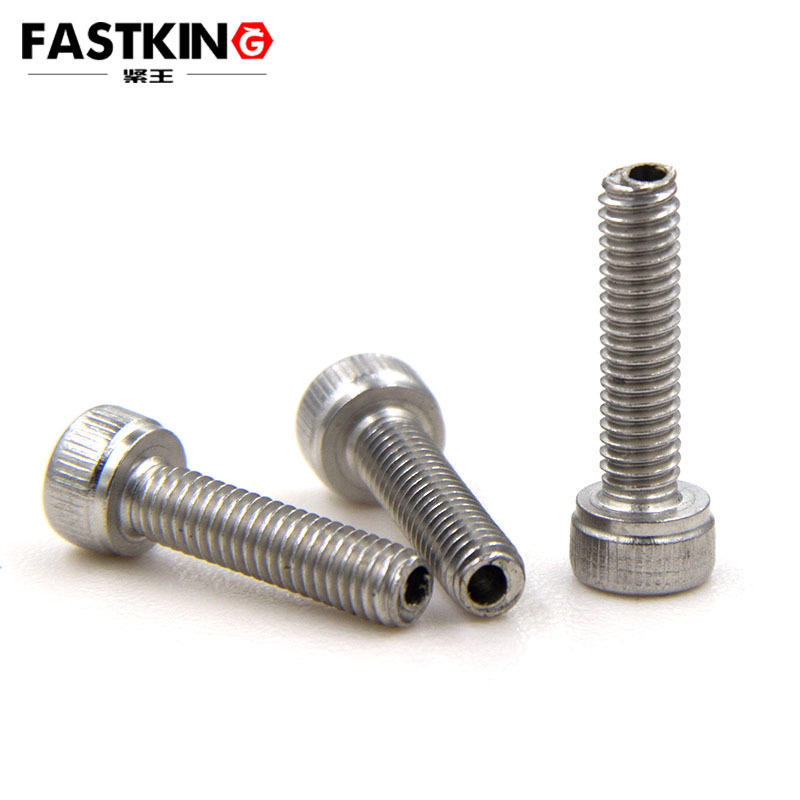

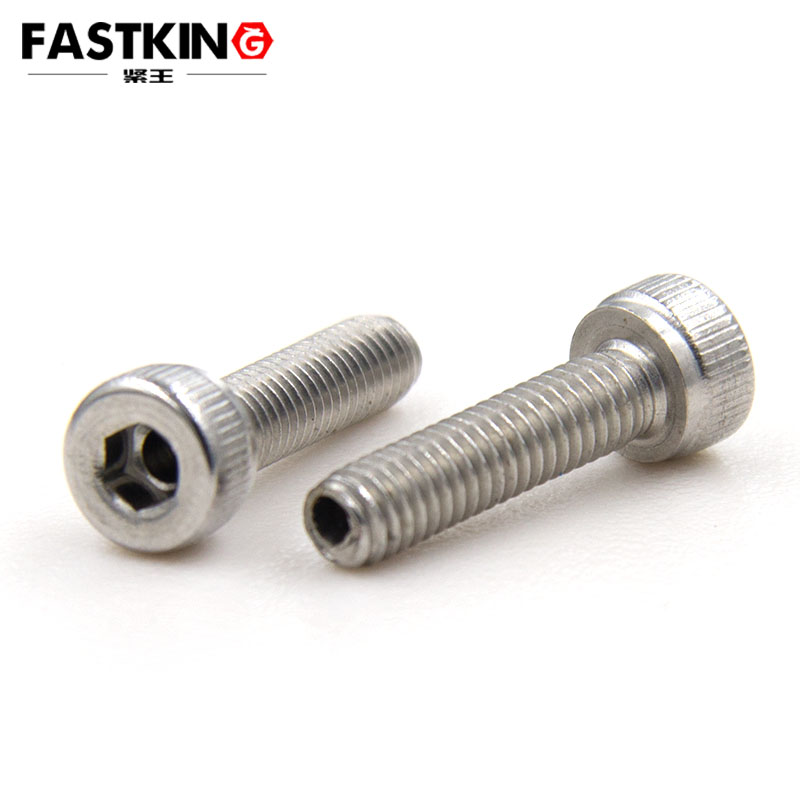

DIN912 Stainless Steel 304 Cup Head Hexagon Through Hole Screws M3M4 Hexagon Machine Screws
- Product description：Whether it is for fixing core components of industrial equipment or assembling precision instruments, it can effectively avoid issues such as loose connections and uneven stress through the synergy of
I. Structural Design: Three Key Advantages Laying the Foundation for Secure Connections
The reliability of socket cap hexagon through-hole screws stems first from the targeted optimization of their structural design. In terms of appearance, the "socket cap" (also known as cylindrical head) has a larger bearing area and height compared to pan-head or countersunk-head screws. When tightened, it can transmit torque more evenly to the surface of the connected part, preventing base material deformation caused by excessive local pressure. Meanwhile, the transition between the head and the screw shank adopts a rounded chamfer design, which reduces stress concentration and prevents head fracture under long-term stress.
The "hexagon socket" drive method addresses the common issue of slippage in traditional slotted or Phillips screws. The hexagon socket has a higher fit with the wrench, enabling it to withstand greater tightening torque. Especially in high-strength fastening scenarios (such as heavy machinery connections), it can effectively avoid loose connections caused by insufficient torque.
The "through-hole" structure (where the screw shank penetrates both ends without a closed end) endows the screw with flexible connection adaptability. It can be used with nuts to achieve "bidirectional fastening" (suitable for thick plate connections) and can also be directly applied in scenarios requiring pin insertion or wiring, eliminating the need for additional drilling that could damage connection integrity, thus further enhancing connection reliability.
Taking material selection as an example, common socket cap hexagon through-hole screws made of 45# steel, 304 stainless steel, and 12.9-grade high-strength alloy cater to different strength requirements respectively: the 45# steel version is suitable for general mechanical fixing (e.g., machine tool shield connections); the 304 stainless steel version, with its corrosion resistance, is suitable for humid environments (e.g., food equipment casings); and the 12.9-grade alloy version can meet the connection needs of high-load scenarios such as wind power equipment and automobile chassis. The combination of material and structure makes "reliability" applicable to a wider range of scenarios.
II. Application Scenarios: Comprehensive Coverage from Precision to Heavy-Duty
1. Precision Instruments and Electronic Equipment: Dual Protection Against Loosening and Minimal Damage
In precision instruments such as electron microscopes and medical diagnostic equipment, component connections not only require reliability but also need to avoid damage to precision components. The socket cap design of the socket cap hexagon through-hole screw reduces pressure on the instrument casing, preventing casing deformation that could affect the calibration of internal components. The hexagon socket drive allows precise control of tightening force using a torque wrench, preventing screw slippage or component damage due to over-tightening. When used with lock nuts, the through-hole structure can resist slight vibrations during instrument transportation and use, avoiding loose connections that might impact measurement accuracy.
For instance, in the coil fixing of nuclear magnetic resonance (NMR) equipment, 304 stainless steel socket cap hexagon through-hole screws not only ensure long-term equipment stability through their corrosion resistance but also guarantee no coil displacement through the dual fastening of the through-hole and nut, thus safeguarding imaging quality.
2. Heavy Machinery and Construction Machinery: Stable Support Under High Loads
In the connection of transmission components in mining crushers and excavators, the high-strength advantage of socket cap hexagon through-hole screws is fully demonstrated. Taking the 12.9-grade alloy version as an example, its tensile strength can reach 1200MPa and its yield strength is ≥1080MPa, enabling it to withstand huge torque and impact loads generated during the operation of transmission components. The large bearing area of the socket cap distributes the load to the equipment housing, preventing local wear on the housing. The through-hole structure, when used with high-strength nuts, forms a "bolt-nut" bidirectional fastening system, which can effectively prevent screw loosening even under long-term high-frequency vibrations, thus avoiding safety accidents caused by the detachment of transmission components.
In the connection of the bucket hydraulic rod of a loader, this screw ensures no displacement of the hydraulic rod during lifting through the efficient torque transmission of the hexagon socket and the stable fastening of the through-hole, thereby guaranteeing operational efficiency.
3. Furniture and Home Improvement: Balancing Aesthetics and Reliability
Socket cap hexagon through-hole screws also play an important role in the assembly of custom furniture and smart home equipment (e.g., smart wardrobes, kitchen cabinets). Compared to traditional self-tapping screws, their socket cap design can be concealed with decorative covers to enhance furniture aesthetics. The hexagon socket drive facilitates installation in narrow spaces (e.g., connections between wardrobe side panels and partitions). When used with nylon lock nuts, the through-hole structure can resist vibrations from opening and closing during long-term furniture use, preventing partition loosening.
For example, in the wall mounting of kitchen wall cabinets, 304 stainless steel socket cap hexagon through-hole screws not only resist corrosion from kitchen oil fumes and moisture through their corrosion resistance but also ensure the cabinet's load-bearing capacity (usually up to 50kg or more) through the combination of the through-hole and expansion bolts, making home connections both safe and durable.
III. Selection and Installation: Enhancing Controllability of Reliability
To fully leverage the reliability advantages of socket cap hexagon through-hole screws, three points should be noted during selection and installation:
First, select appropriate specifications based on the material of the connected part and the load. For example, when connecting aluminum alloy plates, prioritize 304 stainless steel to avoid electrochemical corrosion; when connecting thick steel plates, choose long-shank through-hole screws with double nuts for fastening.
Second, use a hexagon socket wrench of matching specifications during installation to prevent slippage caused by mismatching between the wrench and the socket.
Third, add auxiliary components according to scenario requirements—for example, use spring washers in vibration scenarios and apply anti-rust grease in humid scenarios—to further improve connection stability.
From the delicate fixing of precision instruments to the high-load support of heavy machinery, socket cap hexagon through-hole screws always focus on "structural adaptability", extending the definition of "reliability" from mere strength to adaptability, safety, and durability, making them indispensable and reliable components in the field of connections.
